NEW IN THE QUEUE – 4/24/15 – THE VAPER FUSION BY PETAR KOREN

THE VAPER FUSION BY PETAR KOREN

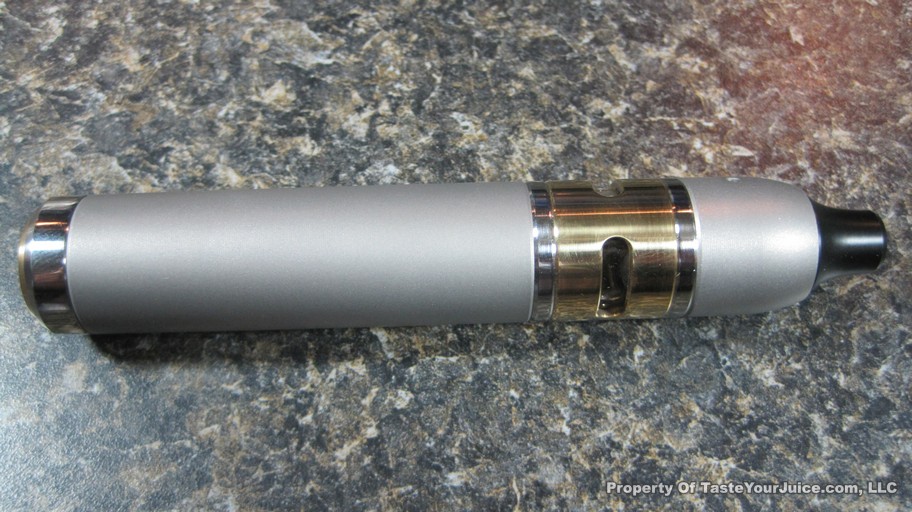

Anyone remember the Petar K method for creating genny builds? Well, he has a mod. This is a sexy little piece and very well well machined. It’s a single coil Genesis, a dual coil Genesis, a dripper, and a hybrid all wrapped into one and is made in Croatia.

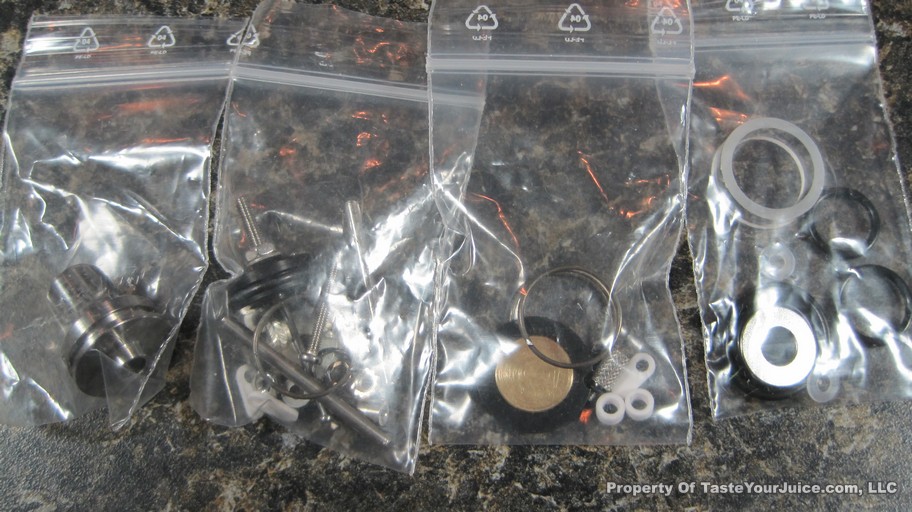

I’ll be honest folks, this one looks like a pain in the ass to build and to clean and comes with a frightening array of parts.

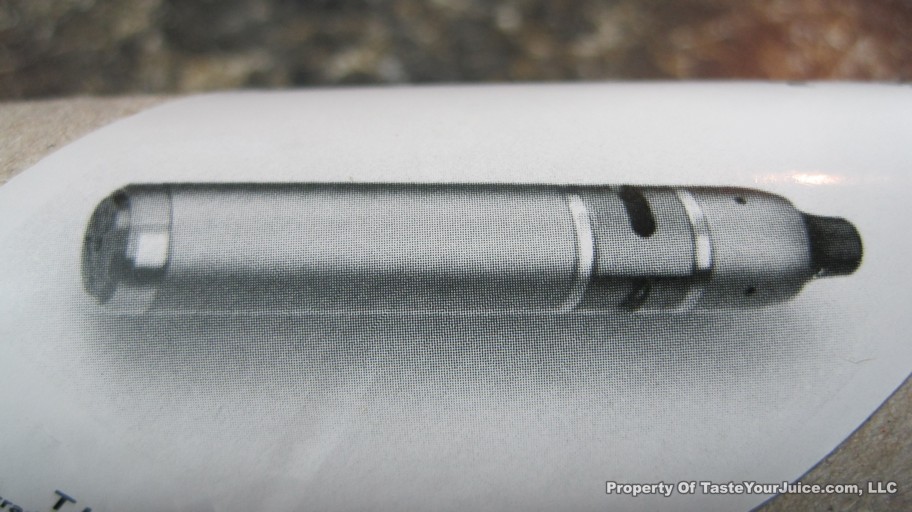

THE VAPER Fusion is a real hybrid which fuses dripper & genesis style atomizers into one APV, in single or dual coil mod.
TV Fusion has many new and mostly unique features, and every component in it is customizable or has multiply functionality.
In dripper mod, tank section can be removed…
MP can be slided in or out for chamber size reduction and air flow direction control.

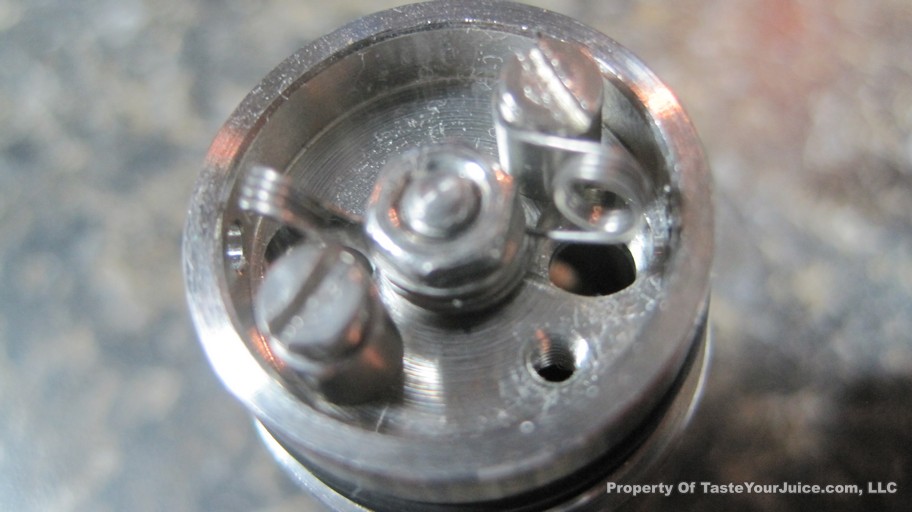

In single coil genesis mod, the other wick hole can be used for wicking adjustment.
TV Fusion fits any type and size of IMR or ICR 18xxx battery, and any kick (with small tolerances).

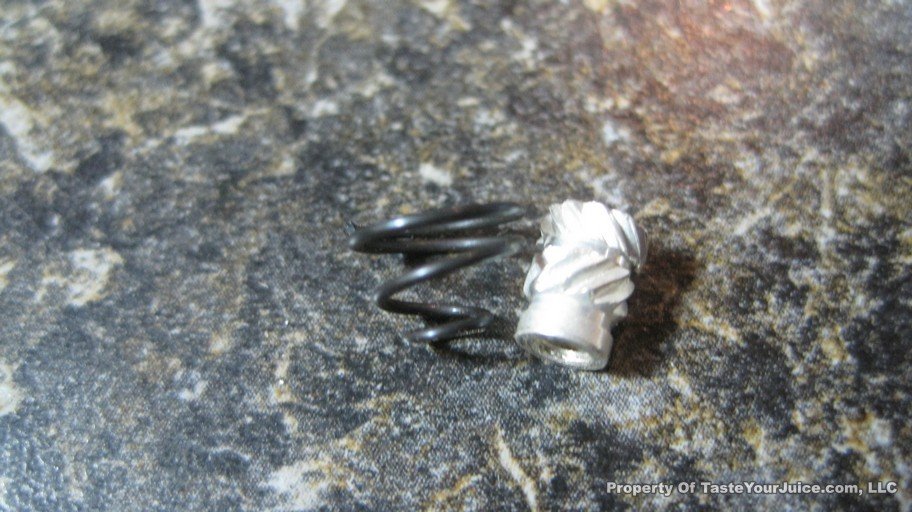

The magnetic switch can work in two different mods – “regular” or “klick” mod;
The switch sensitivity and throw can be adjusted in both mods…

AUTONOMY
Simply, it accepts all 18xxx IMR and ICR (flat and niple top) batteries and Kicks;
TV Fusion comes in 18500 mod; 18350 and/or 18650 tubes are optional;
(in 18650 mod accepts two 18350 IMRs).
Tank Capacity: ~4mlDIMENSIONS
(in millimeters)
Genesis mod: 21 OD and 112 (in 18350); 127 (in 18500); 142 (in 18650 mod) – all lenghts +/-2mm;
Dripper mod: 21 OD and 92 (in 18350); 107 (in 18500); 122 (in 18650 mod) – all lenghts +/-2mm;
Air Holes: 3 x 1.8mm (adjustable and “lockable”)
Deck/Dreep Well: 3.5mm deep
Wick Holes: 2 x 2.5/3.5mm
Threads: 19.5 x 1mm.

MATERIALS
MP: Delrin (Poly Acetal)

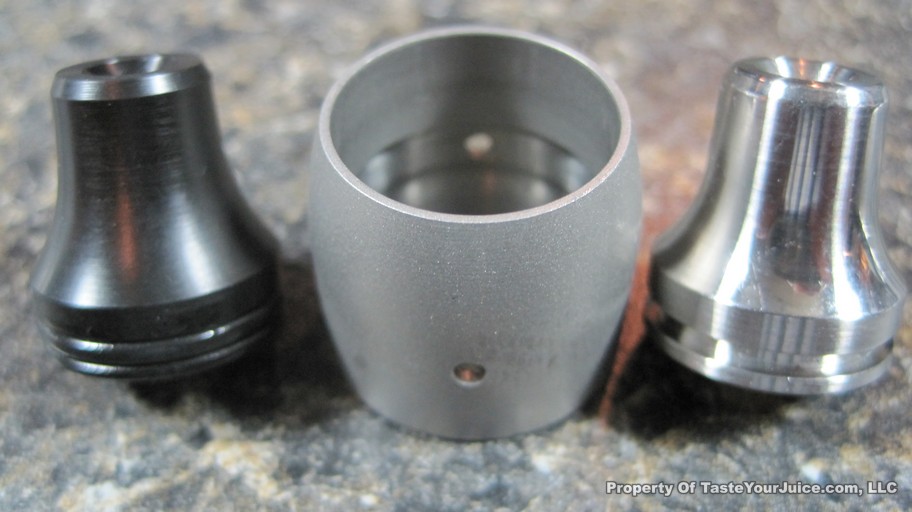

Top Cap: Stainless Steel AISI 316Ti
Deck: SS AISI 316Ti
Screws and Nuts: SS A2 and A4
O-Rings: Silicone and Viton
Insulators and Filling port “covers”: Aluminum Ceramic
Tank Protection: Brass
Tank: Pyrex (Borosilicate Glass)
Tank Bottom Cap: Delrin (Poly Acetal)

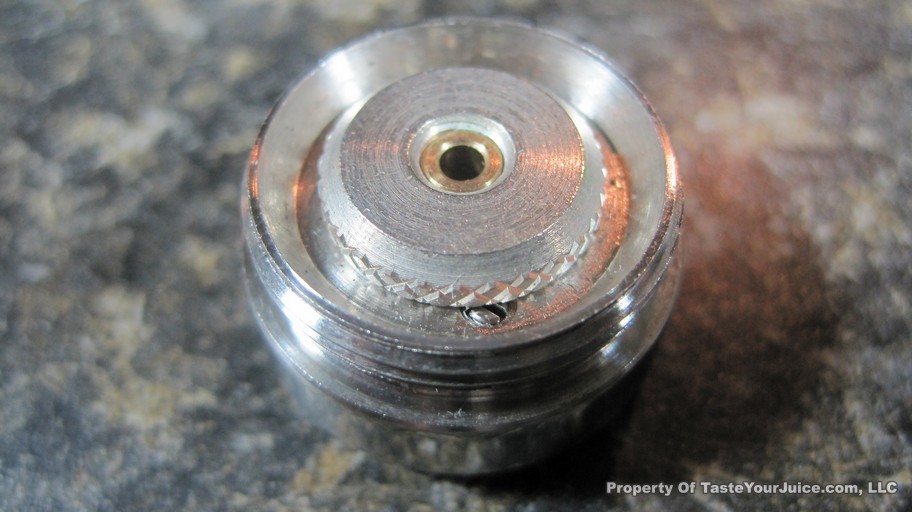

Connector: SS AISI 316Ti

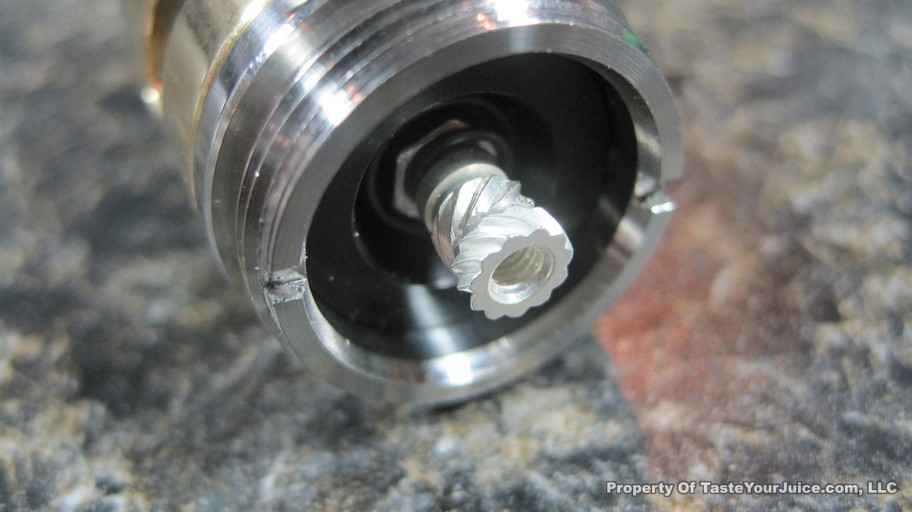

Positive Contact: Brass
Battery Tubes: SS AISI 316Ti
Spacer1: Brass
Spacer2: Delrin (Poly Acetal)
Switch Housing: SS AISI 316Ti
Bottom BUtton: Brass
Switch Contact1: Silver Plated Brass
Switch Contact2: Zink/Copper/Silver Plated Plain Steel
Loaded with: Neodymium (permanent) Magnets N35

FINISH1
Top Cap and Battery Tubes: Glass Media Blasted
Deck, Connector and Switch Housing: Polished
Tank Protection Ring and Bottom Button: Polished

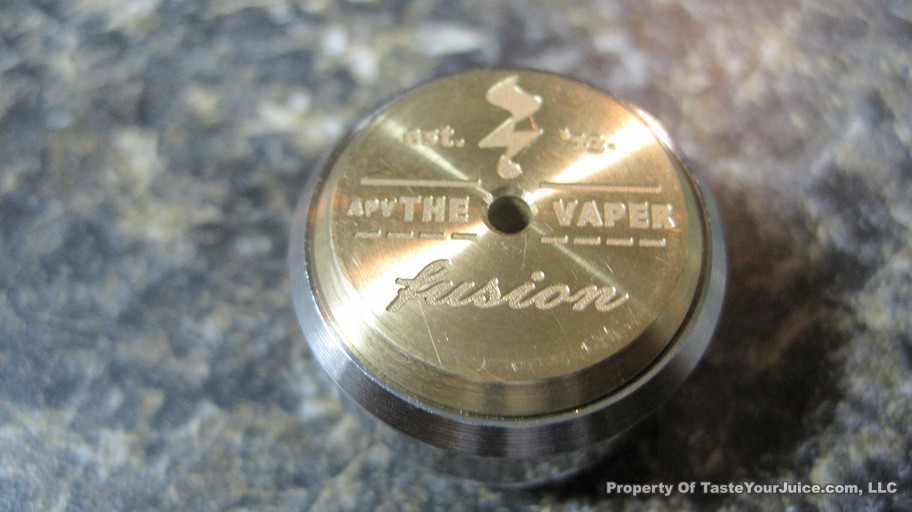

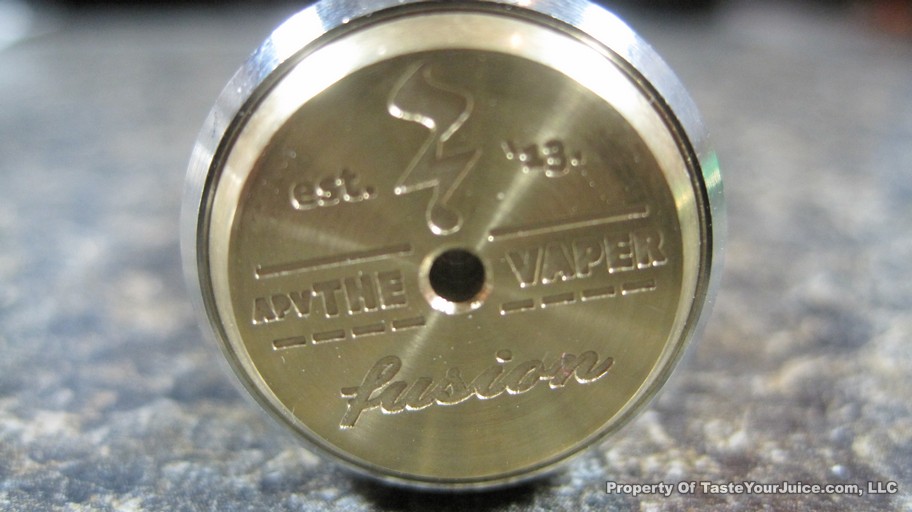

Bottom Button: CNC Engraved

FINISH2
Top Cap and Battery Tubes: Machined Finish
Deck, Connector and Switch Housing: Machined Finish
Tank Protection Ring and Bottom Button: Polished
Bottom Button: CNC Engraved

SETUP
Single and Dual Coil
Vertical and Horizontal

WICKING MATERIALS

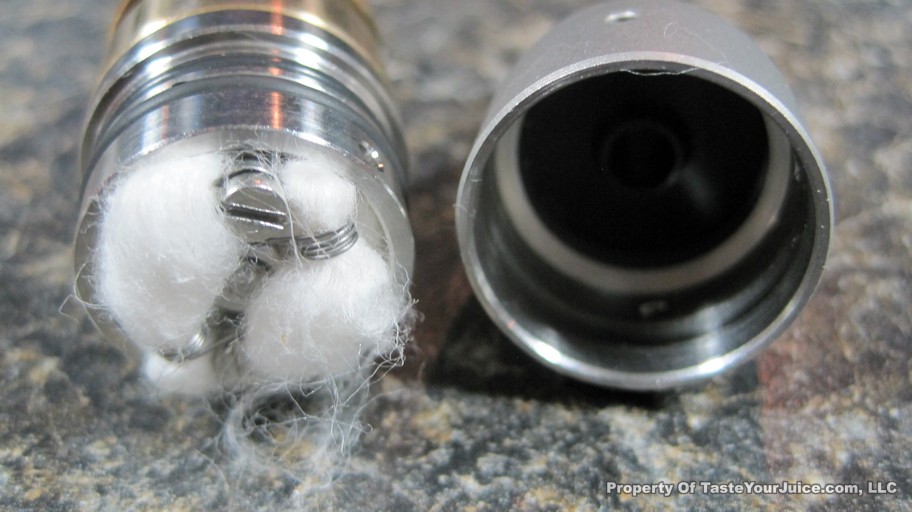

Accepts all types of Rigid and Soft wicking materials

NEW FEATURES
Genesis/Dripper or a combination of bought (e.g: dripper with tank)
Has small ~1ml tank in dripper only mod (when genesis tank is removed)
MP can be slided in or out for +/-2mm for reduced chamber and air flow direction control
In single coil genisis mod wicking can be adjusted
The magnetic switch can work in two different mods – “regular” or “klick” mod;
The switch sensitivity and throw can be adjusted in both mods…
